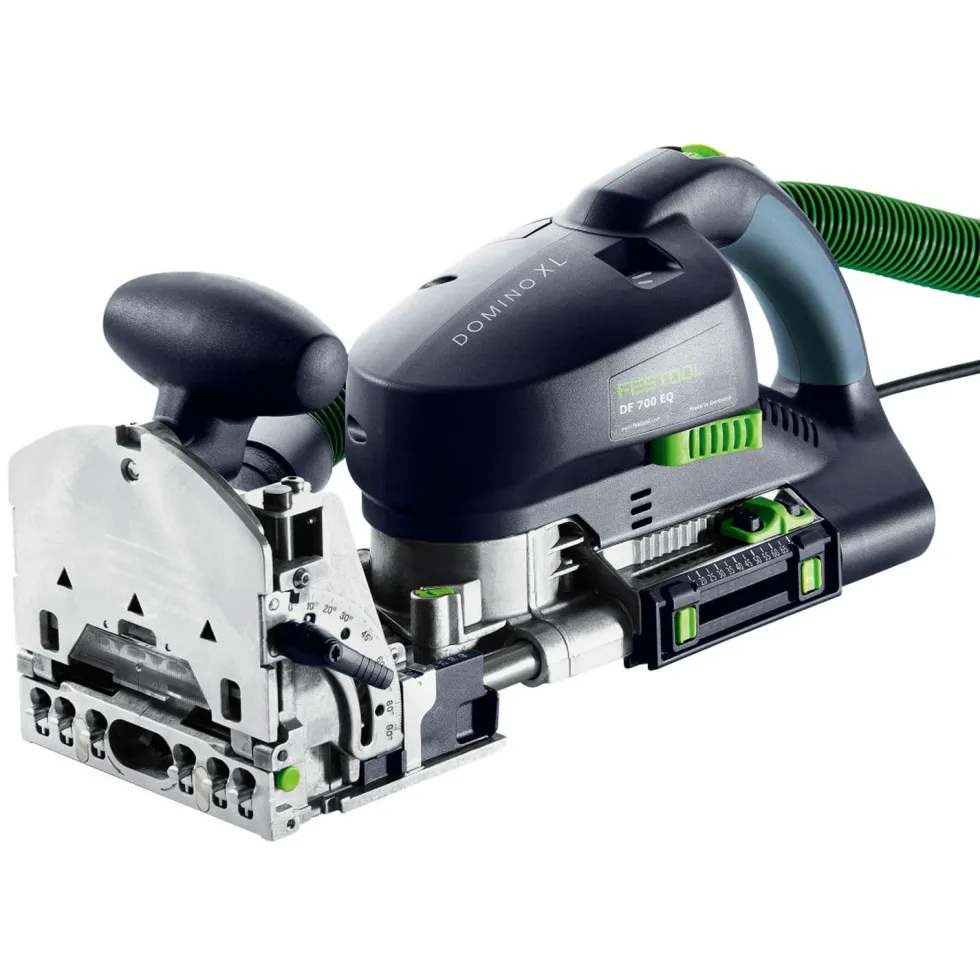

Festool Domino XL DF 700 Joiner

The revolutionary Domino DF 500 that made portable, hand-held power mortising possible, now has a big brother. The bigger Domino XL 700 cuts mortises to handle tenon stock 8, 10, 12 & 14 mm thick (9/16″). It can plunge up to 70 mm deep (2-3/4″) for creating joinery strong enough for entryway doors, gates, rock solid tables & beds, and post & beam garden arbors. Because it’s portable, you no longer have to lift heavy or long parts onto a machine table, just bring the XL 700 to the work piece and plunge the oscillating bit to cut the mortise. The accurate Domino tenon stock assures a perfect fit, while the incremental depth stop adjustment and built-in retractable locator pins make for efficient work. The XL 700 comes with a 12 mm cutter and storage Systainer.

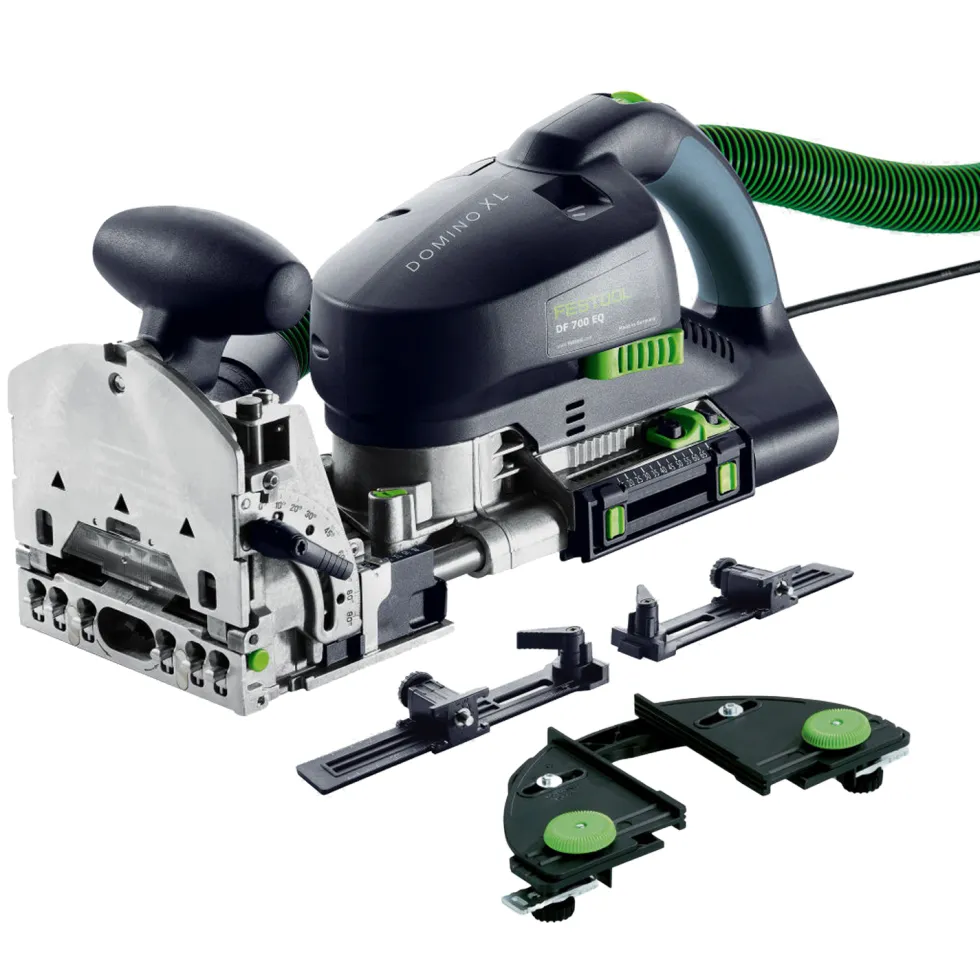

Domino XL DF 700 comes with the Cross Stop & Trim Stop to let you accurately space mortises & work on narrow stock safely.

Specifications

• Cutter spindle speed – 21,000 rpm
• Available DOMINO XL slot cutter diameters – (8/10/12/14 mm)
• Miter routing – 0-90°; stop positions at 0°, 22.5°, 45°, 67.5°, 90°
• Movable stepped stop – (15/20/25/30/35/40/45/50 mm)
• Power consumption – 720 W
• Routing depth stop – 15-70 mm in 5 mm increments
• Weight – 11.4 lb (5.2 kg)

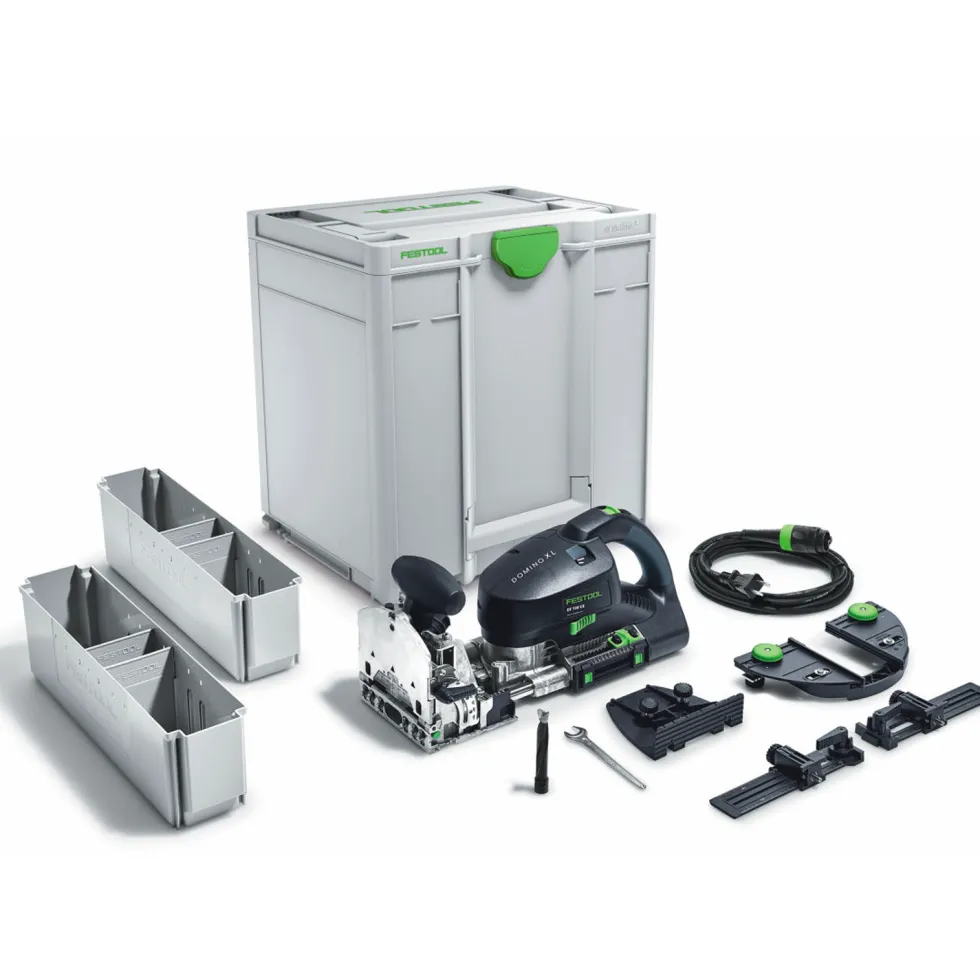

Included With DF 700 EQ Joiner Set

• Domino DF 700 EQ Joiner with 12 mm Cutter
• Plug-it power cord
• Support bracket
• Wrench
• Cross Stop
• Trim Stop
• Systainer
