Festool TS 75 EQ-F-Plus Plunge Cut Circular Saw

Bring the accuracy of a panel saw to your shop with the Festool TS 75 Circular Saw and guide rail system. The cutting accuracy of this saw far exceeds that of standard circular saws. Not only can you cut precisely on your measured mark every time, your cuts will be virtually splinter-free on both sides of your work. Unlike conventional circular saws, Festool’s design allows the saw blade to retract into the housing, giving you the option to start and end the cut accurately anywhere on the material. A built in retractable riving knife moves with the blade providing added safety. The saw can tilt up to 45° while on the guide rail giving a level of accuracy for bevel cuts that is simply astounding.

The dust extraction shroud with rear facing swivel port allows for a clear view of the cut even with a vac hose attached. A 10 A, soft start motor provide constant speed under load with variable speed adjustment from 1,350-3,550 rpm. Motor has temperature and current-triggered overload protection. The 8-1/4″ 36T carbide blade provides a cutting depth (when on the guide rail) of 2-3/4″ at 90° and 2-1/8″ at 45°.

Depth of cut scale reads in inches.

Guide Rail

We strongly recommend that you buy a guide rail (Sold separately) to go with your track saw. You cannot experience the full benefits of this saw without the guide rail.

Specifications

• Power Consumption: 1600 W
• Speed: 1350-3550 rpm
• Cut Depth on rail at 45° 55 mm (2-1/8″)
• Cut Depth on rail at 90° 70 mm (2-3/4″)
• Cut Depth off rail at 45° 60 mm (2-3/8″)
• Cut Depth off rail at 90° 75 mm (2-15/16″)
• Blade Diameter: 210 mm (8-1/4″)
• Blade Arbor: 30 mm (1.181″)
• Bevel Range: 0° to 47°
• Inside Dust Extraction Connection Diameter: 27 mm (1-1/16″)
• Outside Dust Extraction Connection Diameter: 36 mm (1-7/16″)
• Weight: 6.2kg (13.6 lb)

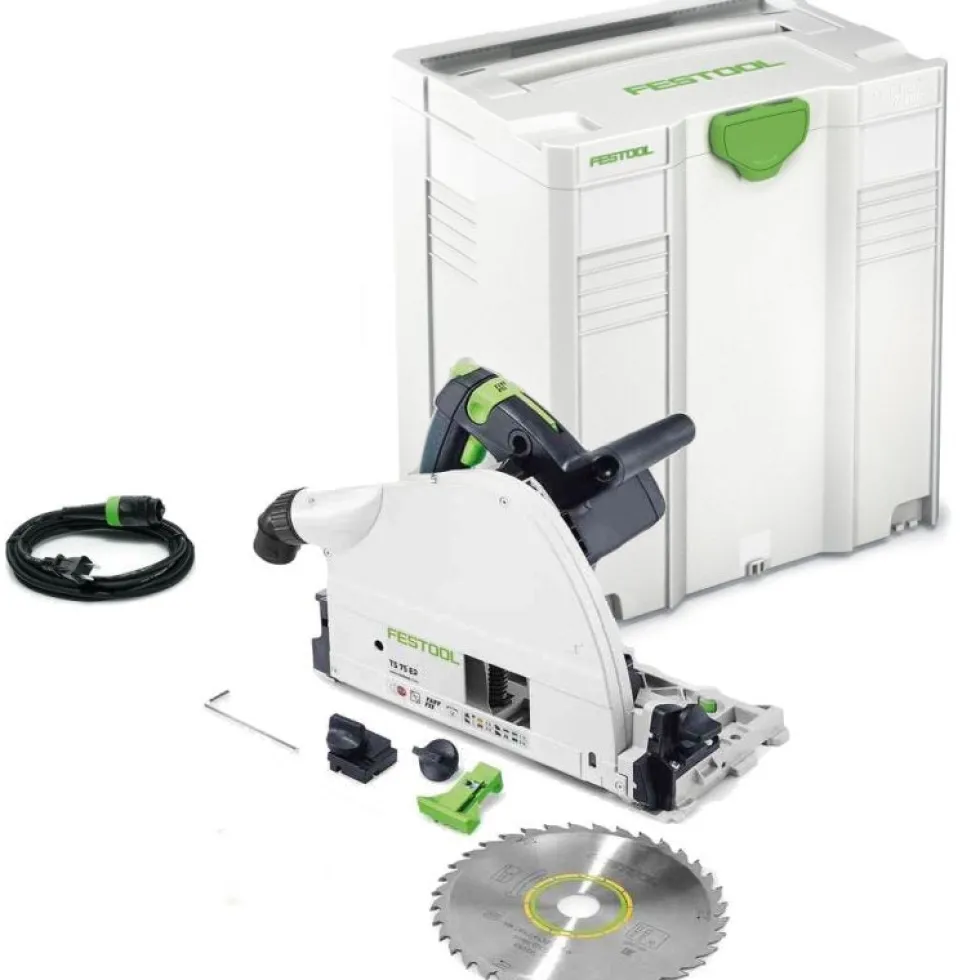

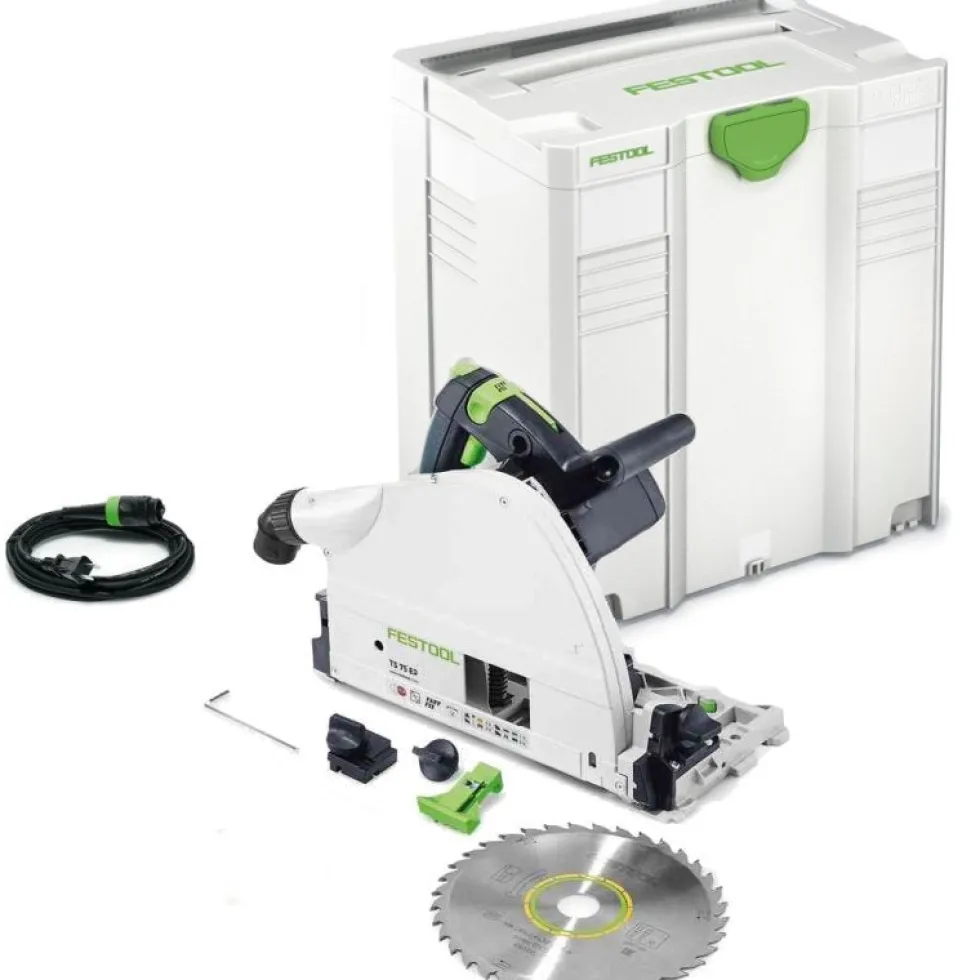

Includes

• TS 75 EQ Plunge Cut Saw
• Universal Carbide Blade (36 tooth, ATB, 2.4 mm kerf)
• Wrench
• 4 m (13ft) 16 gauge Plug-it Power Cord
• Single Splinterguard
• SYS3 Systainer Storage Case
