Narex Rasps

After the huge success of our Narex chisels manufactured in the Czech Republic, we are pleased to introducethese new Narex rasps as another excellent value.

The blades of Narex rasps are manufactured from tool steel. After they are CNC stitched, they are hardened to Rc 45. The handles are Hornbeam.

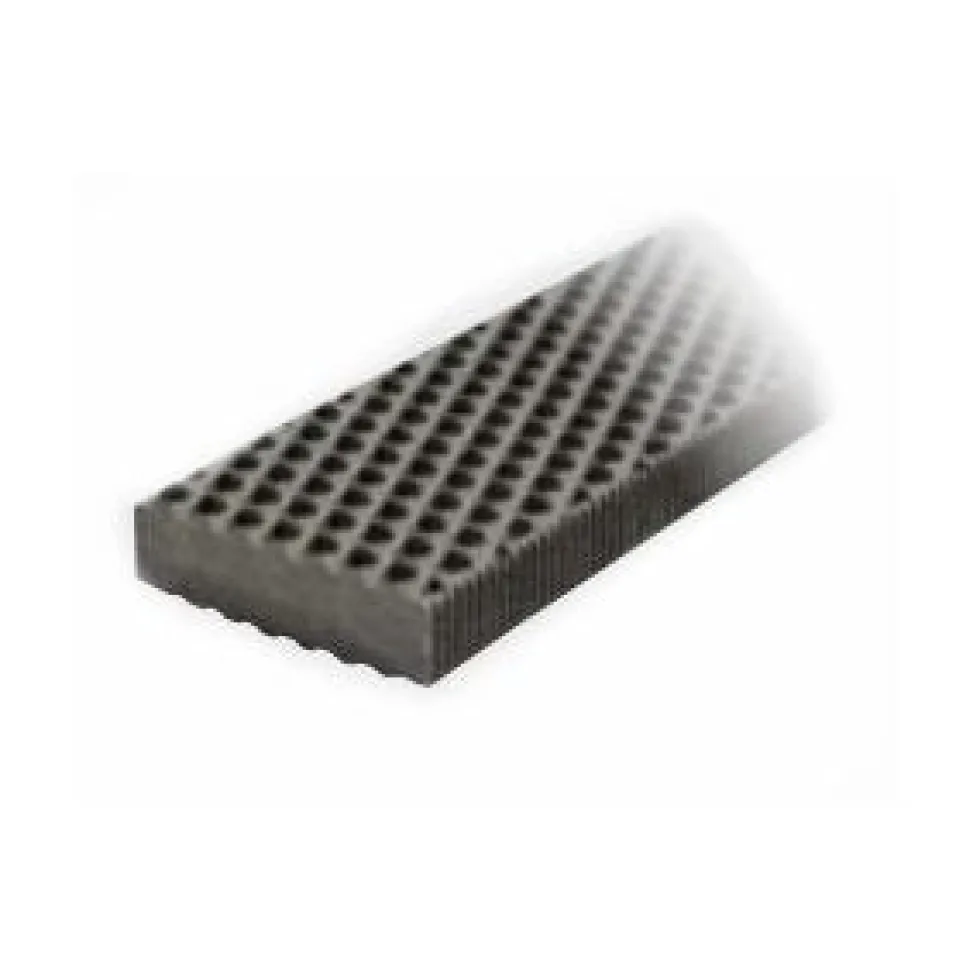

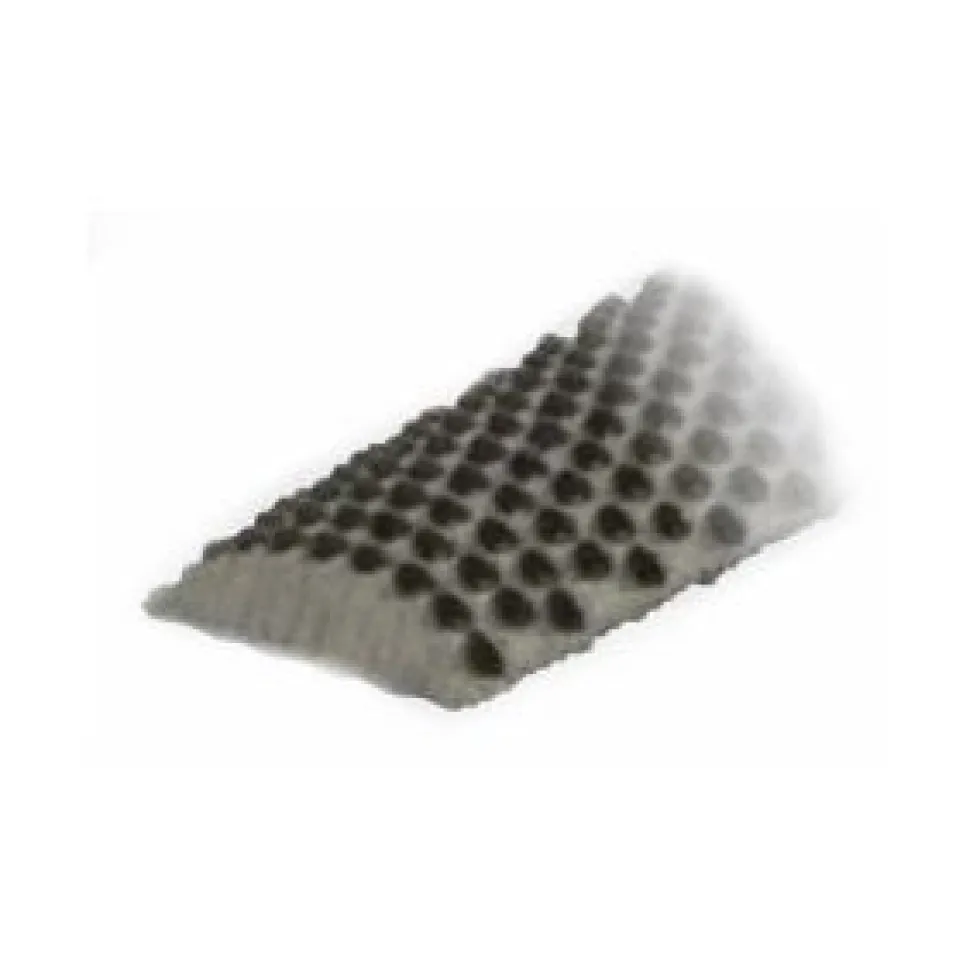

CNC stitching ensures that the pattern is uniform and each tooth is raised to the same height. The result is a wood rasp that exhibits a steady rate of removal and produces an even finish on the workpiece.

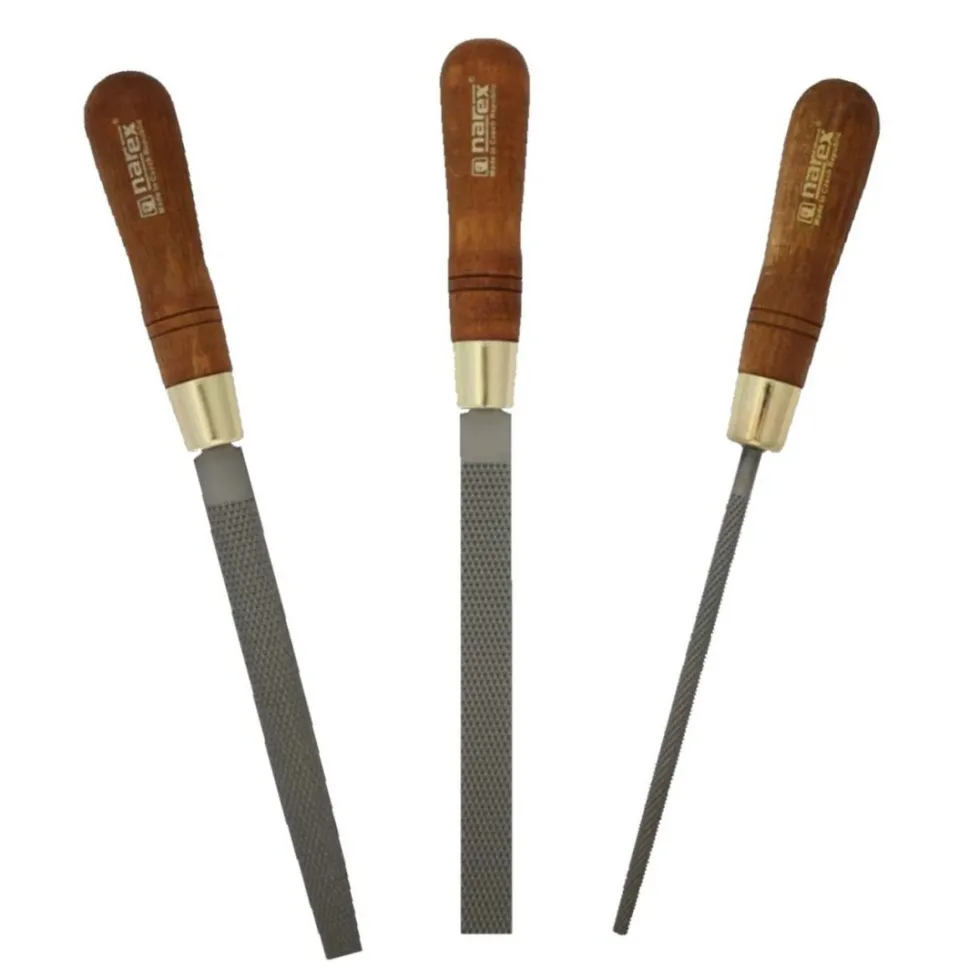

Half-round and flat styles have teeth on both sides.Edges are not safe.

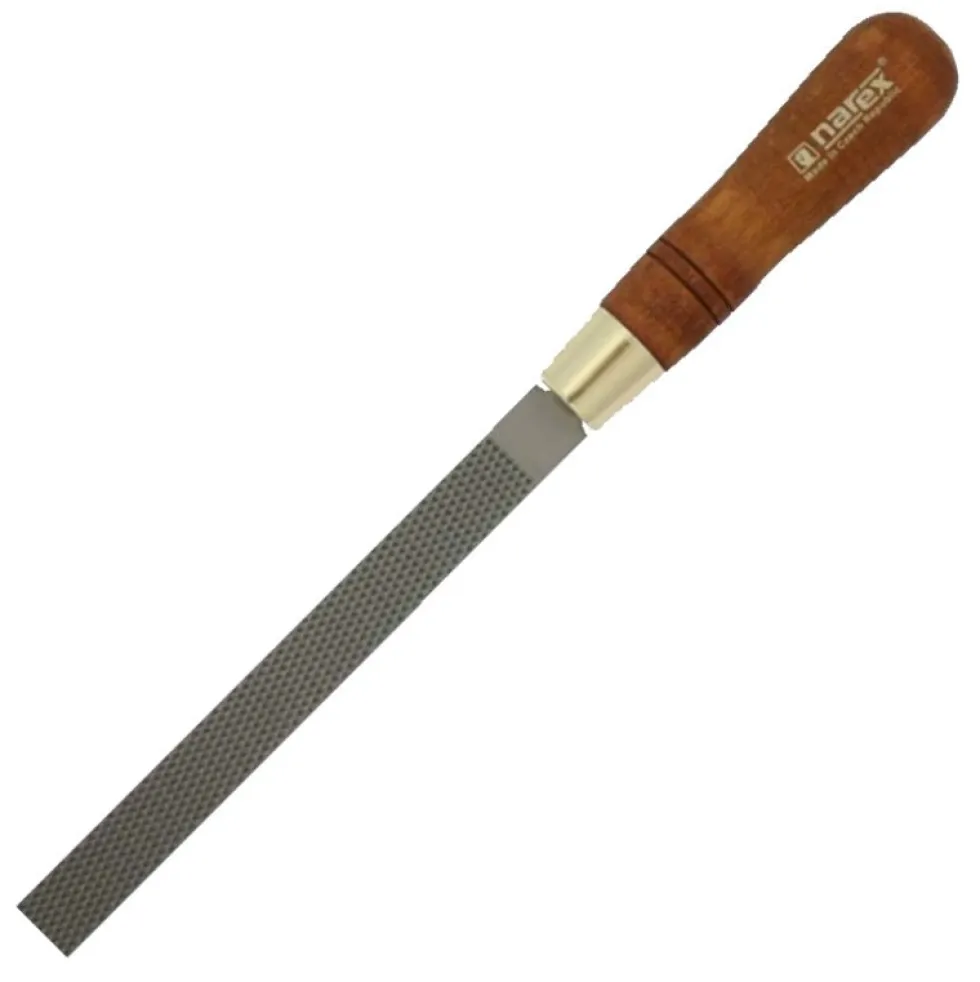

Flat

-->

Flat

-->

Flat

-->

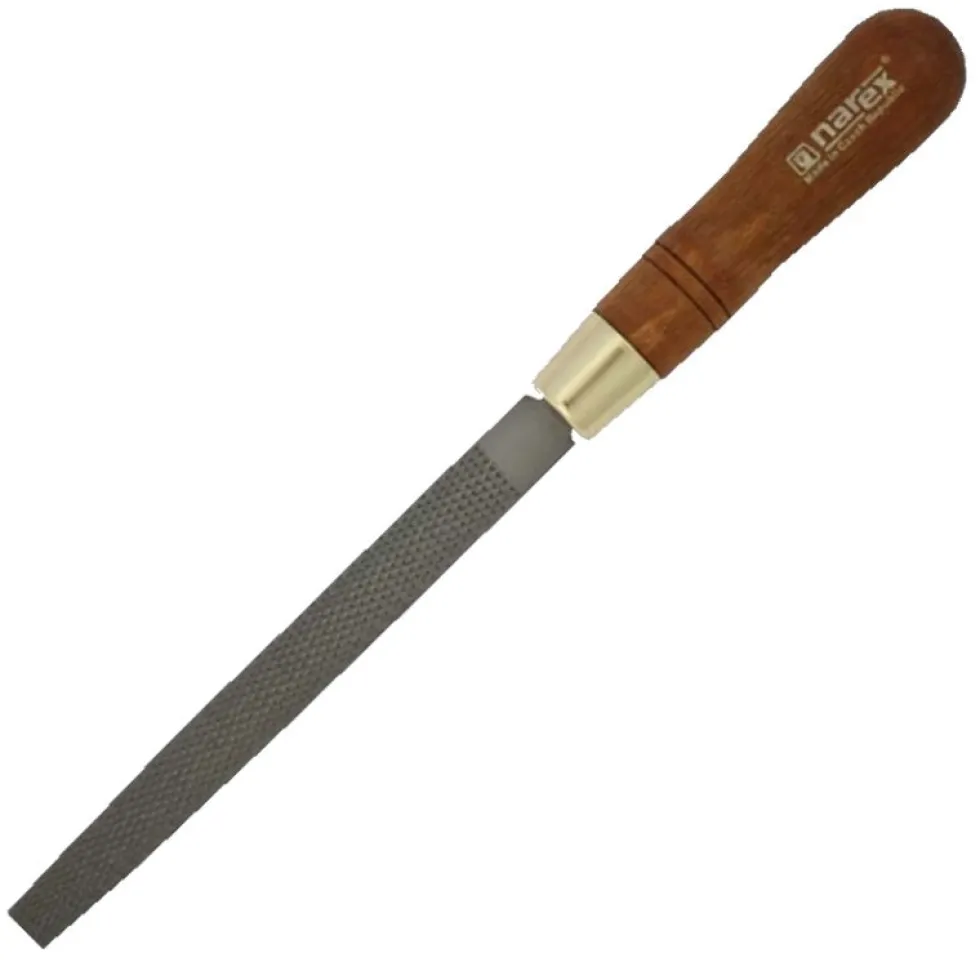

Half-Round

-->

Half-Round

-->

Half-Round

-->

Round

-->

Round

-->

Round

-->

Shape	Width	Thickness	Cutting Length	Overall Length	Grit (Teeth per square centimeter)
Flat	16mm (5/8″)	4mm (3/16″)	150mm (5-7/8″)	295mm (11-5/8″)	20 teeth per cm²
20mm (13/16″)	5mm (3/16″)	200mm (7-7/8″)	345mm (13-9/16″)	16 teeth per cm² – standard 22 teeth per cm² – fine cut
25mm (1″)	6mm (1/4″)	250mm (9-13/16″)	395mm (15-9/16″)	12 teeth per cm²
30mm (1-3/16″)	7mm (9/32″)	300mm (11-13/16″)	445mm (17-1/2″)	10 teeth per cm²
Half-Round	16mm (5/8″)	5mm (3/16″)	150mm (5-7/8″)	295mm (11-5/8″)	20 teeth per cm²
20mm (13/16″)	6.5mm (1/4″)	200mm (7-7/8″)	345mm (13-9/16″)	16 teeth per cm² – standard 22 teeth per cm² – fine cut
25mm (1″)	8mm (5/16″)	250mm (9-13/16″)	395mm (15-9/16″)	12 teeth per cm²
28mm (1-1/8″)	9mm (3/8″)	300mm (11-13/16″)	445mm (17-1/2″)	10 teeth per cm²
Round	6mm (1/4″)	6mm (1/4″)	100mm (3-15/16″)	295mm (11-5/8″)	20 teeth per cm²
8mm (5/16″)	8mm (5/16″)	200mm (7-7/8″)	345mm (13-9/16″)	16 teeth per cm² – standard 22 teeth per cm² – fine cut
10mm (3/8″)	10mm (3/8″)	250mm (9-13/16″)	395mm (15-9/16″)	12 teeth per cm²
12mm (1/2″)	12mm (1/2″)	300mm (11-13/16″)	445mm (17-1/2″)	10 teeth per cm²
