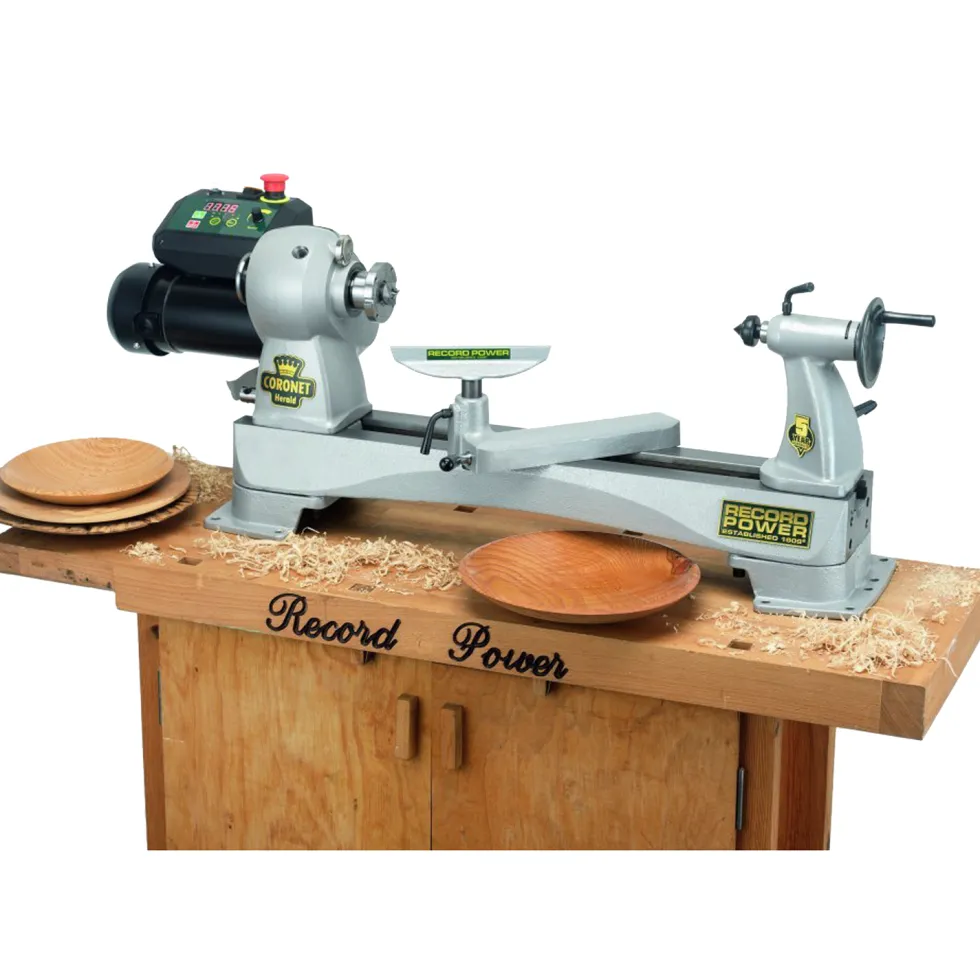

Record Power Coronet Herald 14 inch EVS Lathe

The Record Power Coronet Herald Lathe is a world class machine for woodturners of all levels. It brings top-end professional performance at a fraction of the size and cost of comparable heavy-duty machines. The excellence of engineering, ergonomics and quality manufacturing can be felt throughout, making the lathe a pleasure to use while delivering rock solid performance.

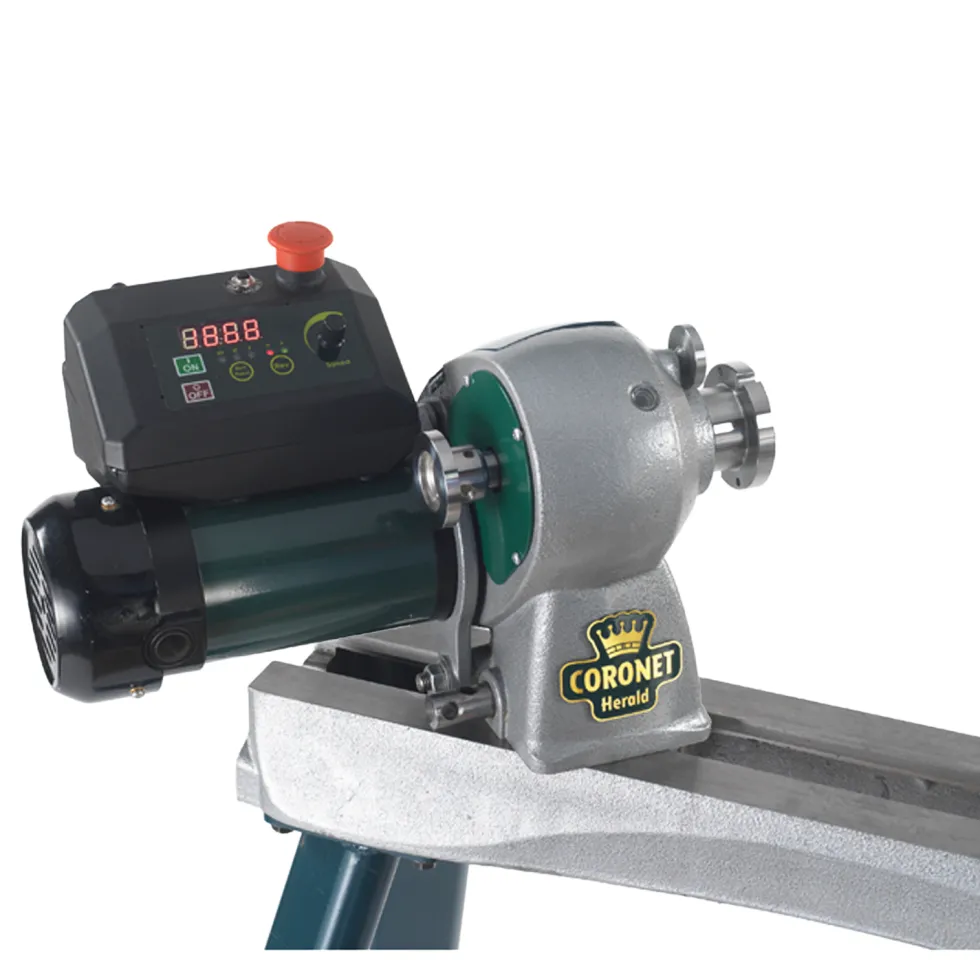

The Coronet Herald has a 750 W (1 hp) motor featuring the latest in motor technology giving it huge amounts of torque, comparable to lathes over twice the size and motor rating. Instantaneous speed change is achieved using the easily accessible Electronic Variable Speed (EVS) control panel. Reversing is also offered for sanding or left handed turning (Must be used with suitable locking systems). The headstock of the Herald can be rotated 360° optimizing access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be located in popular positions. The headstock can also be moved along the lathe bed if required.

This is the 2nd Generation Herald lathe with the upgraded tailstock.

Mounting Notes

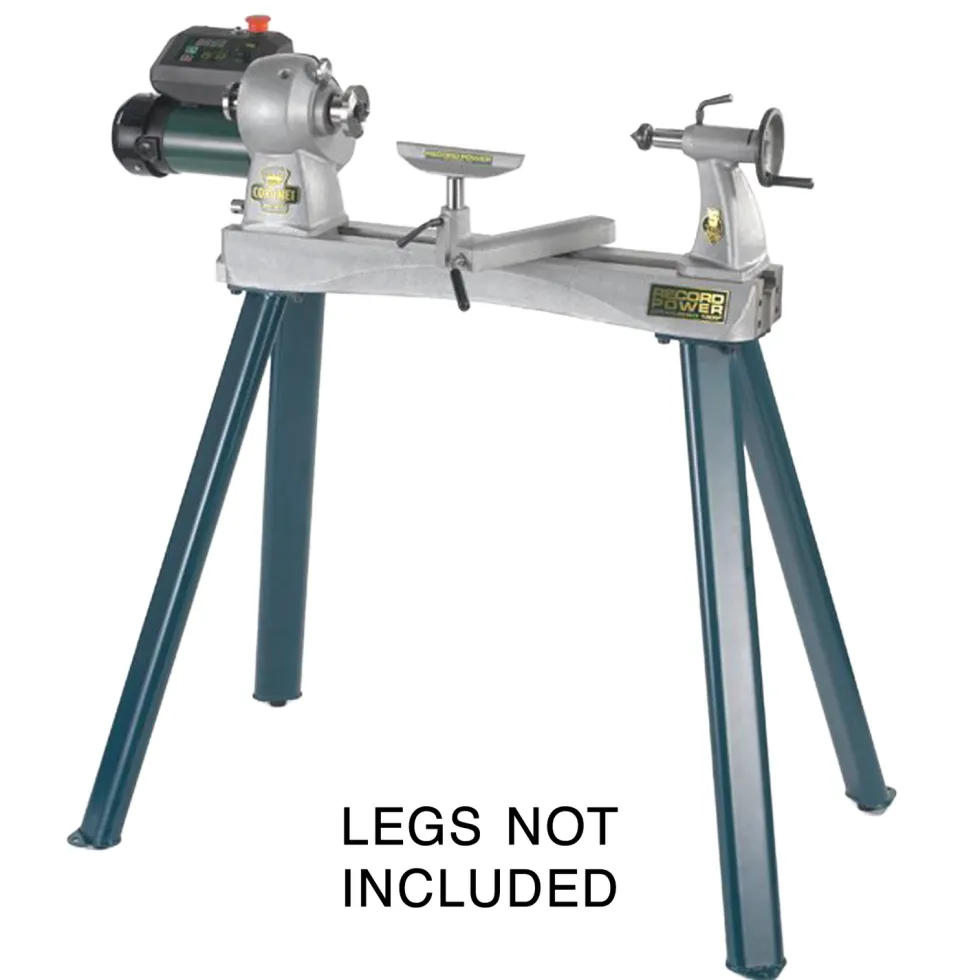

The leg stand pictured is not included. The optional Record Power Tubular Stand is sold separately.

If you want to mount/bolt the Herald lathe to a workbench, the Riser Feet are required. You can use the lathe on a workbench without bolting it down.

Features:

• Includes: 7″ Tool rest, 3″ faceplate, Live center, 4-prong center
• Cast Iron bed
• Heavy Duty 1″ diameter tool rest post helps minimize vibration

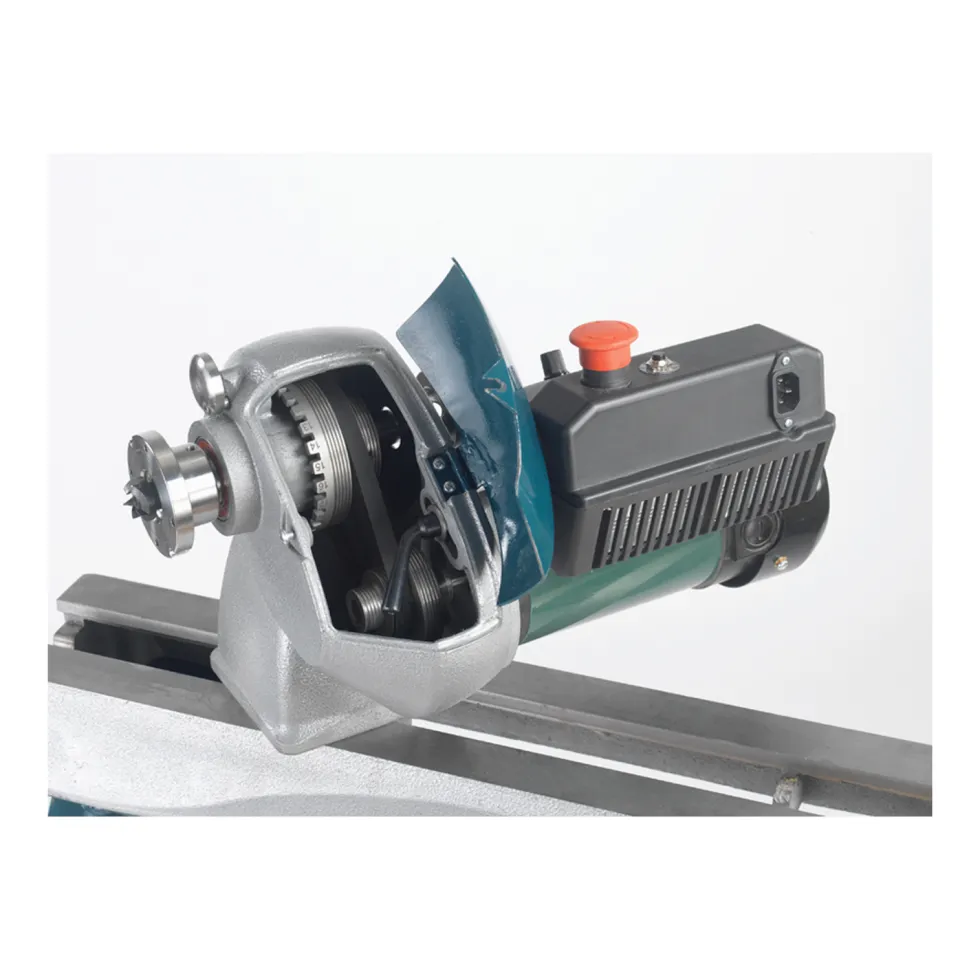

• A 3 step pulley is provided for maximum versatility
• Heavy Duty Spindle Lock and Indexing offers a full 24 point indexing function
• Innovative Tailstock Design allows easier access to the cam lock handle at the rear

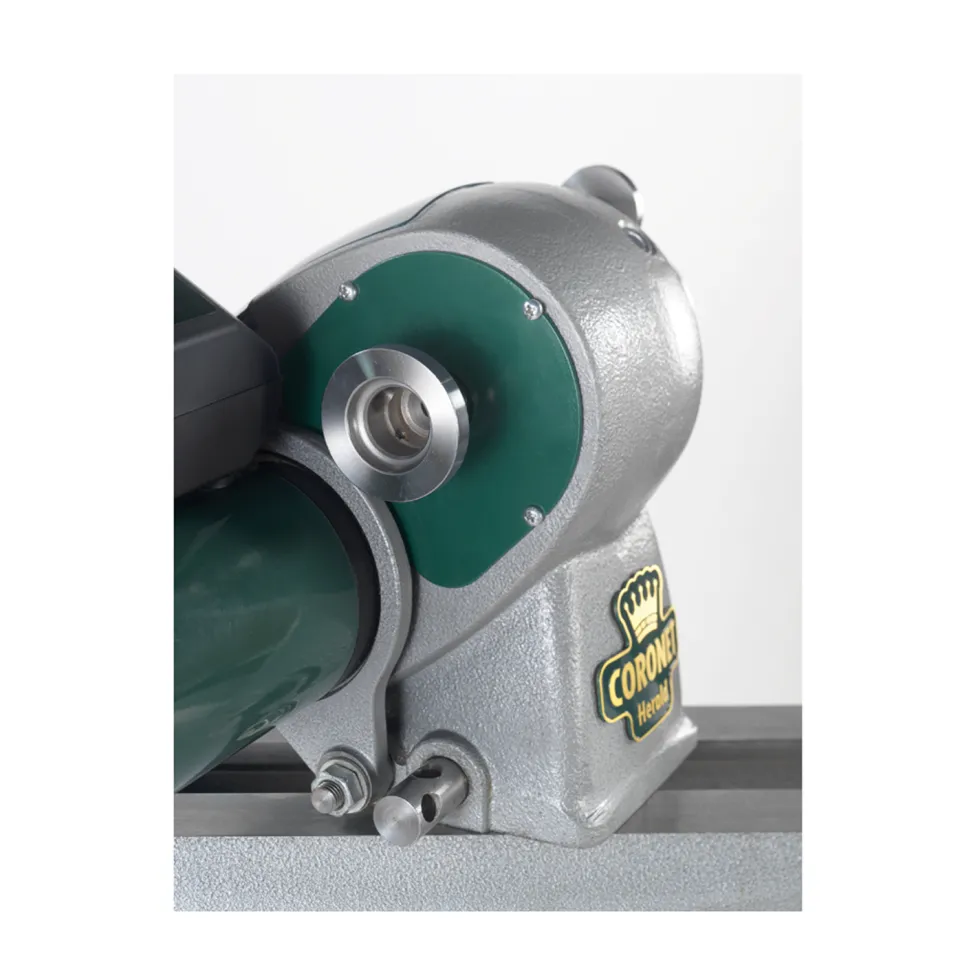

• The headstock features a substantial hand wheel to turn the spindle
• Cast Iron bed expandable with optional Record Power 16″ Bed Extension
• 5-Year Warranty

Specifications:

• Maximum bowl diameter – 21″
• Maximum swing over bed – 14″
• Maximum between centers – 20″
• Spindle speeds – 95-1055, 140-1868 and 290-3890 rpm
• #2 Morse Taper
• Thread: 1-1/4″- 8 tpi
• Motor output – 750 W (1 hp) DC Variable Speed
• Plugs in to 110 V
• Weight is 105 lb

Additional Information

Record Power Coronet Herald Lathe Instruction Manual
