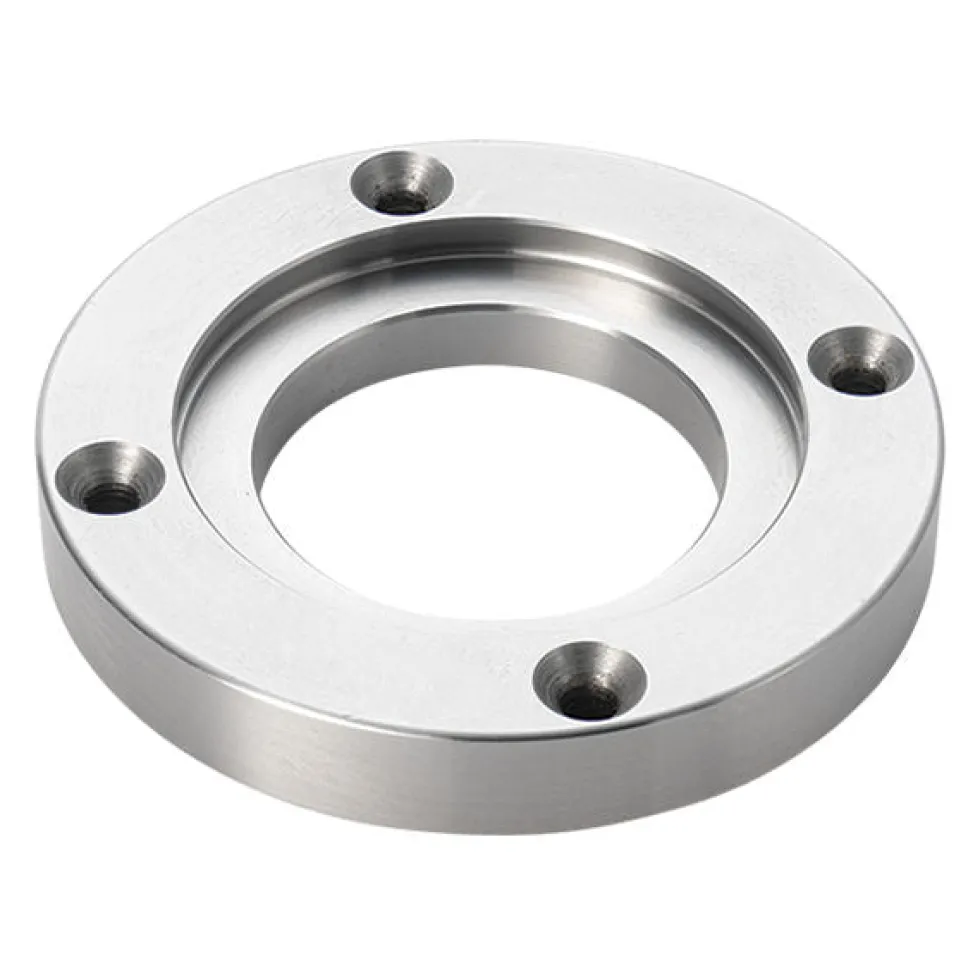

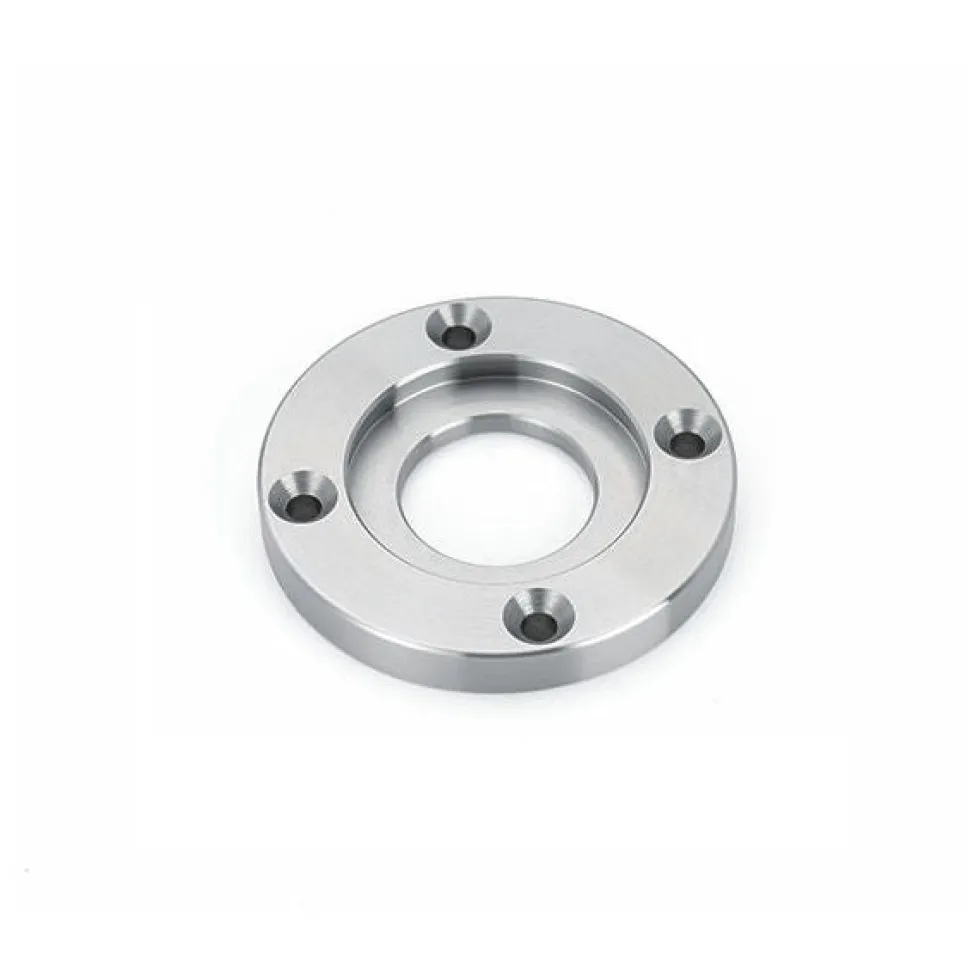

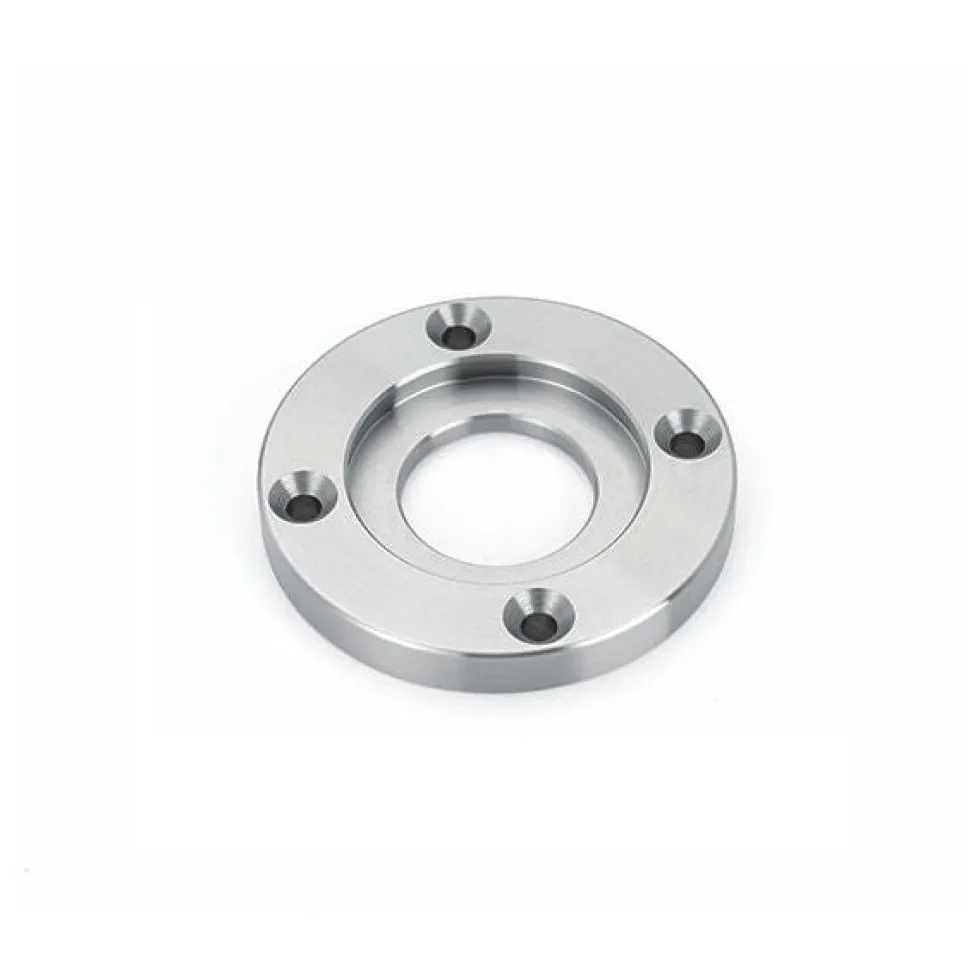

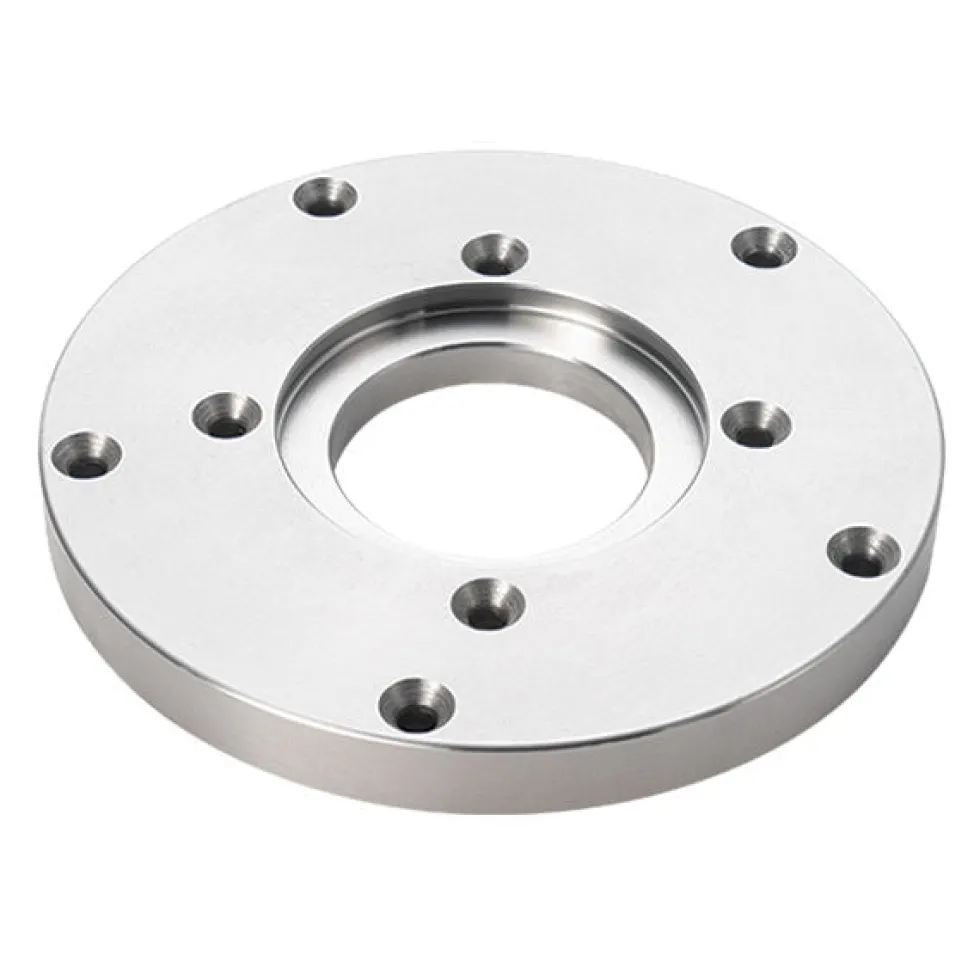

Record Power Faceplate Rings
$26.99
Faceplates have always been regarded as a safe and secure holding method. However, they are a slower mounting method (especially when compared to a scroll action chuck). Now, you can have the best of both worlds. Faceplate Rings offer the same secure holding power of a faceplate, combined with the quick convenience of your chuck.
- The Faceplate Rings fit directly into your Record Power Chuck (appropriate jaw needs to be in the chuck). You don’t have to remove the chuck from your lathe, as you would with traditional faceplate mounting.
- Fast mounting method for bowl blanks
- Best alternative to your woodworm screw mounting, which is only recommended for smaller bowls
- It is a strong mounting method, even with irregular sized wood, and rough cut surfaces
| Size | Outside Diameter |
Gripe Diameter |
Inside Diameter |
Compatible Chucks |
Required Jaws |
RP # |
|---|---|---|---|---|---|---|
| 50mm – 2″ | 87mm (3-7/16″) |
60mm (2-3/8″) |
44mm (1-3/4″) |
SC3 and SC4 Chucks | 62313 50mm Standard Jaws |
62572 |
| 100mm – 4″ | 126mm (4-15/16″) |
60mm (2-3/8″) |
44mm (1-3/4″) |
SC3 and SC4 Chucks | 62313 50mm Standard Jaws |
62572 |
| 68mm – 2-11/16″ | 68mm (2-11/16″) |
42mm (1-5/8″) |
28mm (1-1/8″) |
SC1 and SC2 Chucks | 62303 40mm Standard Jaws |
62571 |
|
Metric measurements are binding. Inch measurements are approximate. All of the required jaws are standard equipment on the compatible chuck. |
