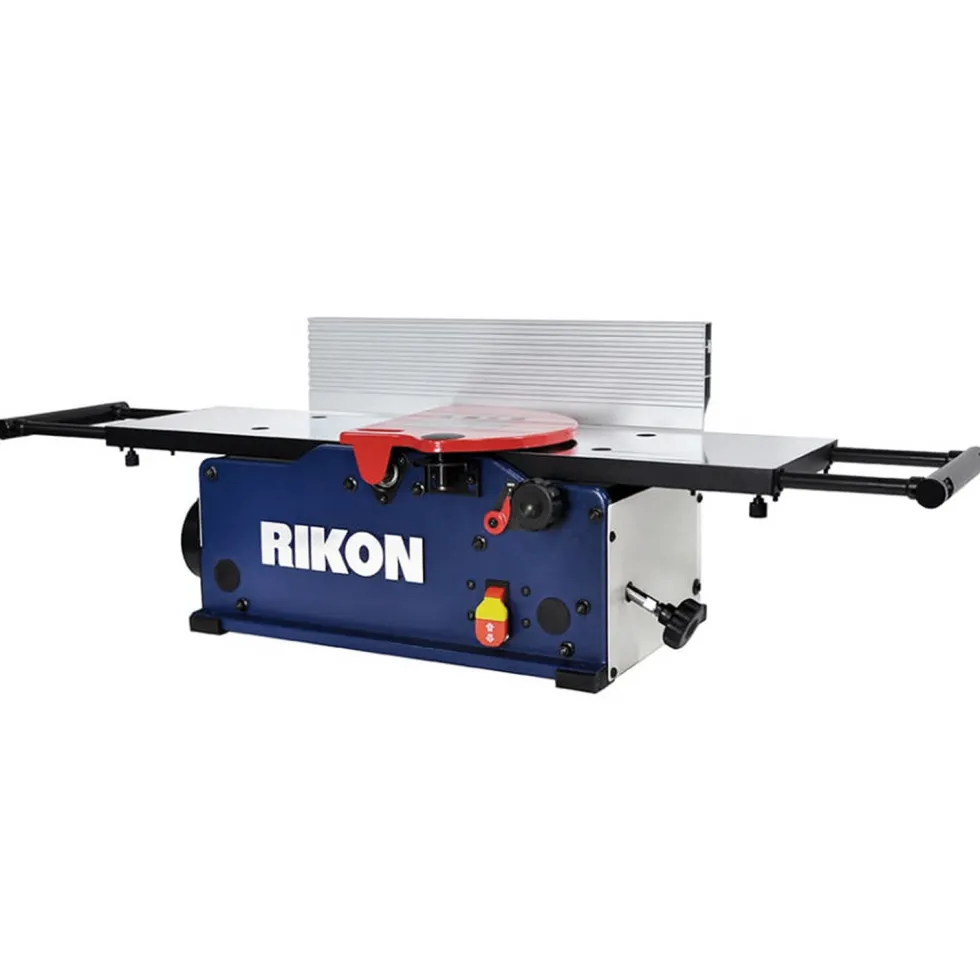

Rikon 10 inch Helical-style Benchtop Jointer 20-1000H

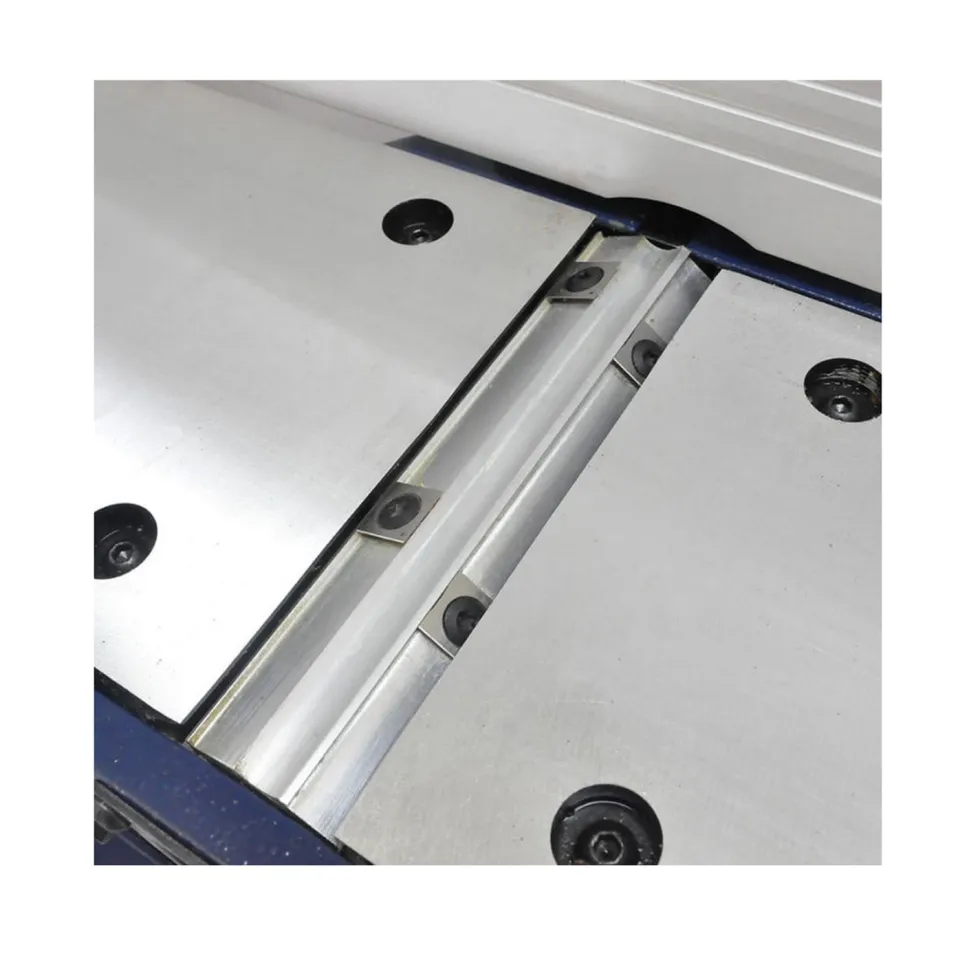

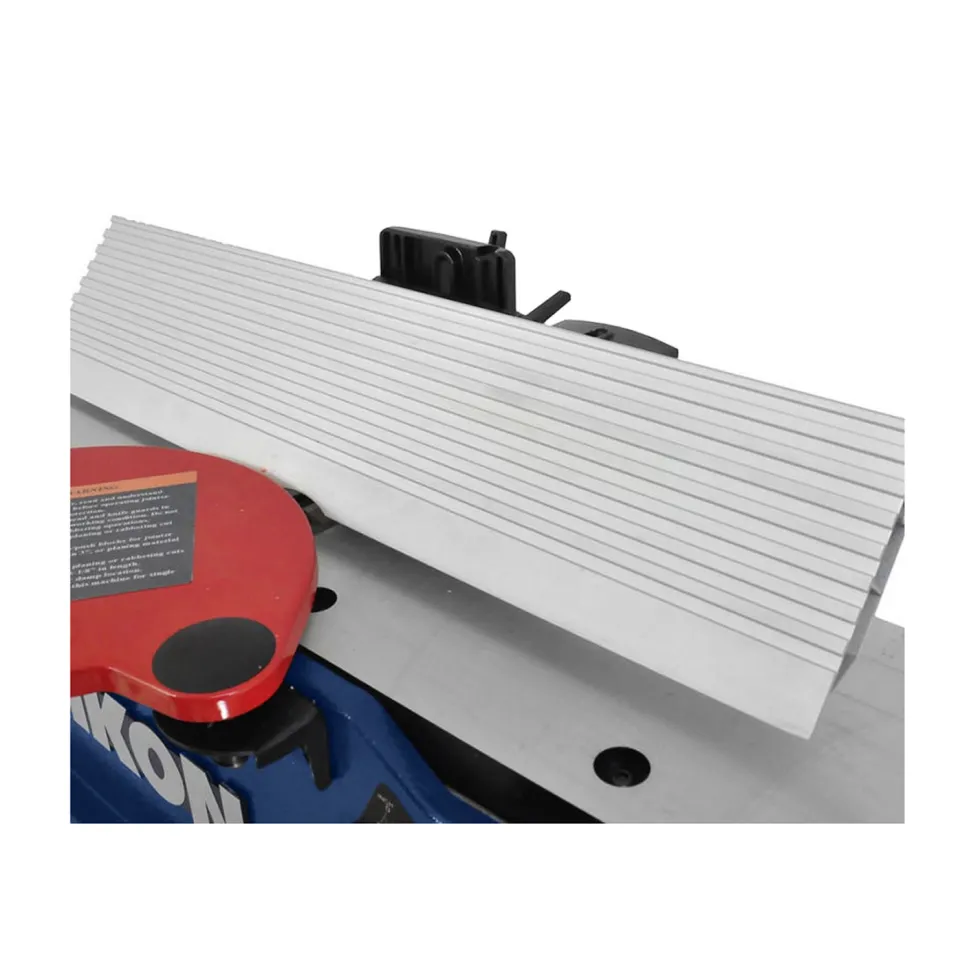

Rikon’s 20-1000H 10″ Benchtop Jointer has a 6-row helical-style cutter head with 20 HSS, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 34″ to 54″ long. It has rigid all-metal construction, machined cast iron tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately and a spring-loaded safety guard. It’s a capable machine that will fit in even the most space-challenged shop.

The 20-1000H Jointer includes a FIVE-YEAR manufacturer’s warranty.

Specifications

• Motor – 12 A, 120 V, 60 Hz, 19,000 rpm
• Overall Table Size – 34″ x 12-3/16″
• Overall Table Size w/ extensions – 54″ x 10-3/16″
• Stock Width – 3/4″ – 10″
• Minimum Stock Length – 10″
• Minimum Stock Thickness – 1/2″
• Maximum Depth of Cut – 1/8″
• Cutterhead speed – 11,000 rpm
• 2-sided Knife Insert Size – 14.2 x 14.2 x 2 mm (0.56″ x 0.56″ x 0.077″)
• Knife inserts – 20 in 6 rows
• Cutterhead diameter – 2″
• Fence size – 24″ x 4-3/8″
• Fence Tilt – 90-135°
• Dust Port – 4″ (4″ to 2-1/2″ & 2-1/4″ adapter included)
• Overall dimensions – 54″ long x 21″ wide x 13″ high (with extensions out)
• Base Size – 19″ x 13-1/2″
• Net Weight – 79 lb
• Shipping Carton – 39″ x 19″ x 12-1/4″; 81 lb
• Five Year Warranty

Includes

• 20 2-sided HSS Inserts (installed)
• 4″ to 2-1/2″ & 2-1/4″ dust port adapter
• Manual
• Jointer Push Blocks – 2
• Hex Wrenches – 2.5 mm & 4 mm
• T-Wrench – T25 Torx

Additional Information

Rikon 20-1000HSP Benchtop Jointer Manual
