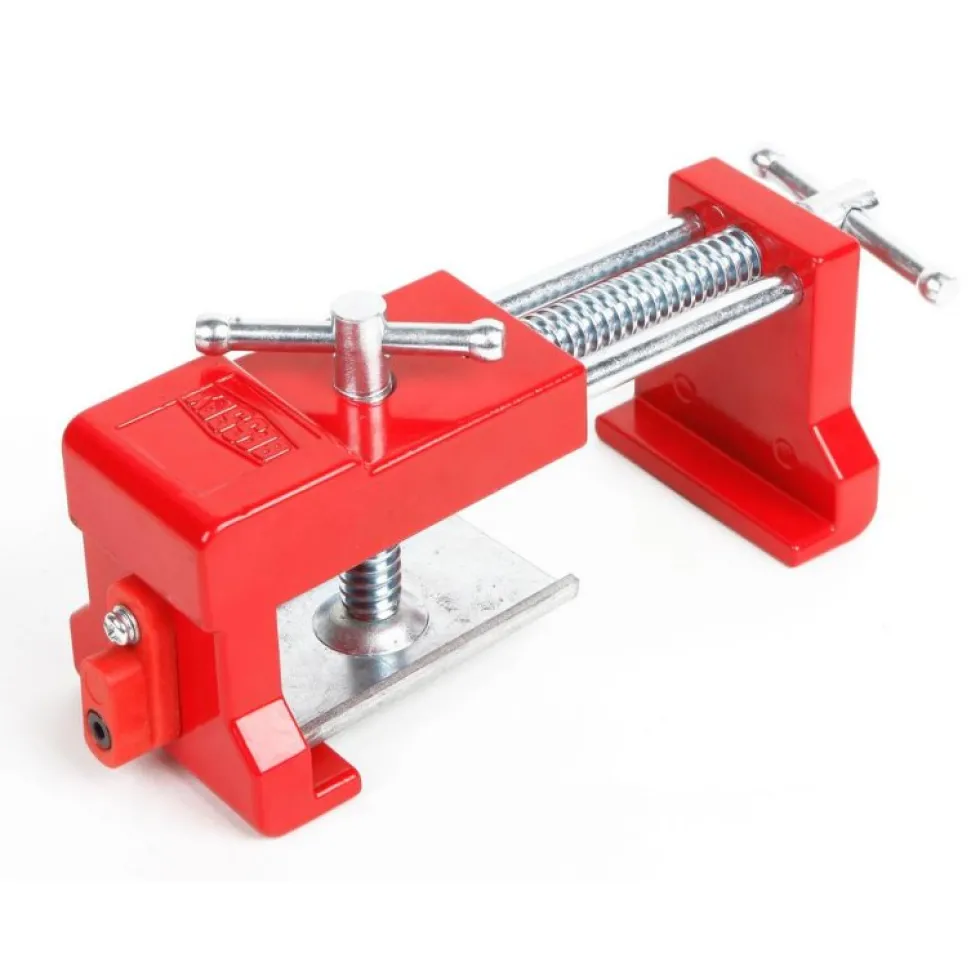

Bessey Cabinetry Clamp for Face Frames

Bessey Cabinetry Clamp for Face Frames

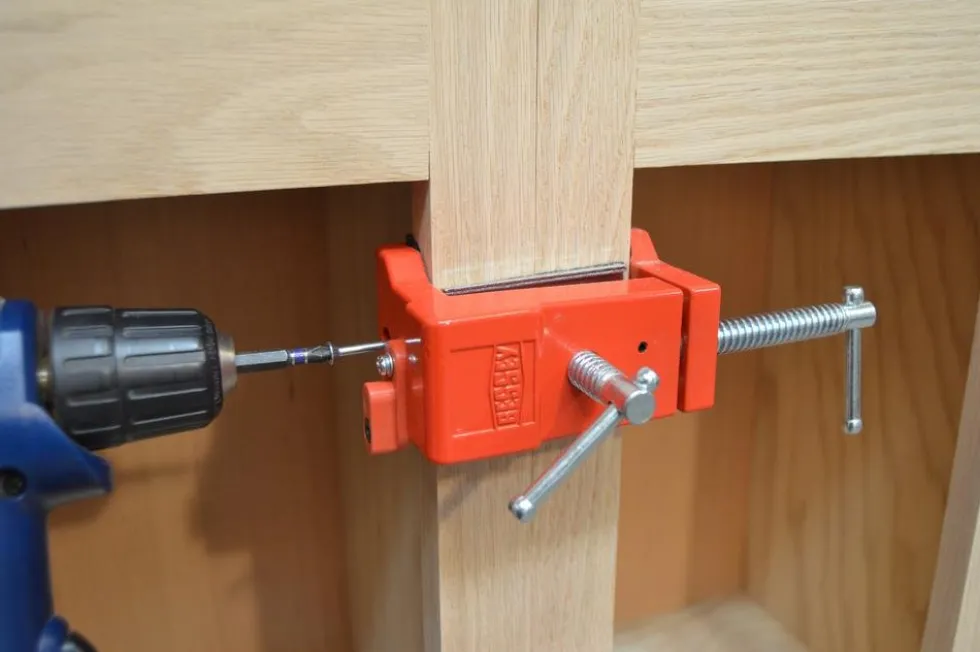

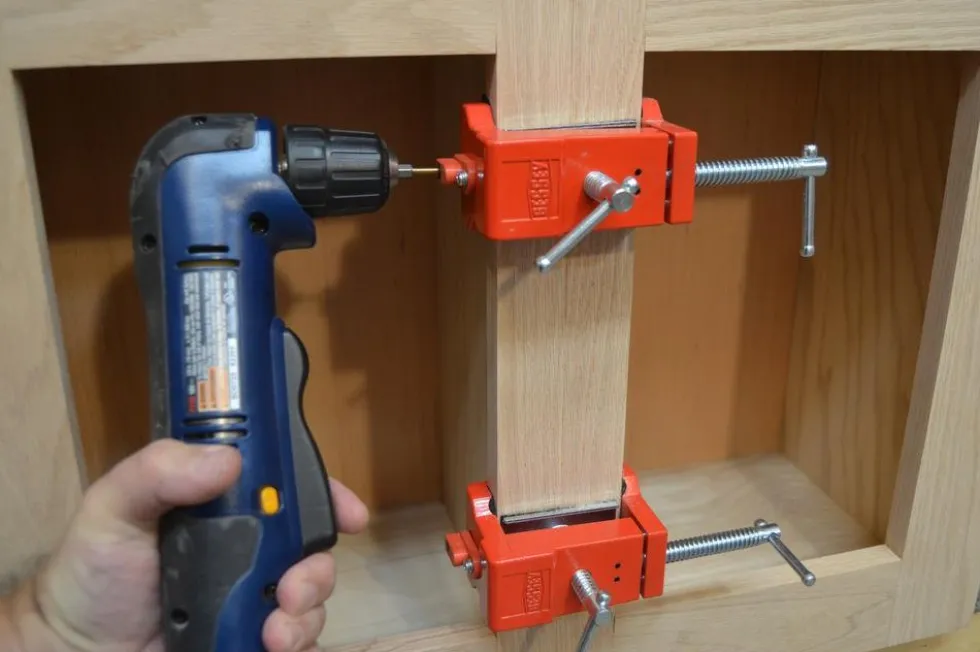

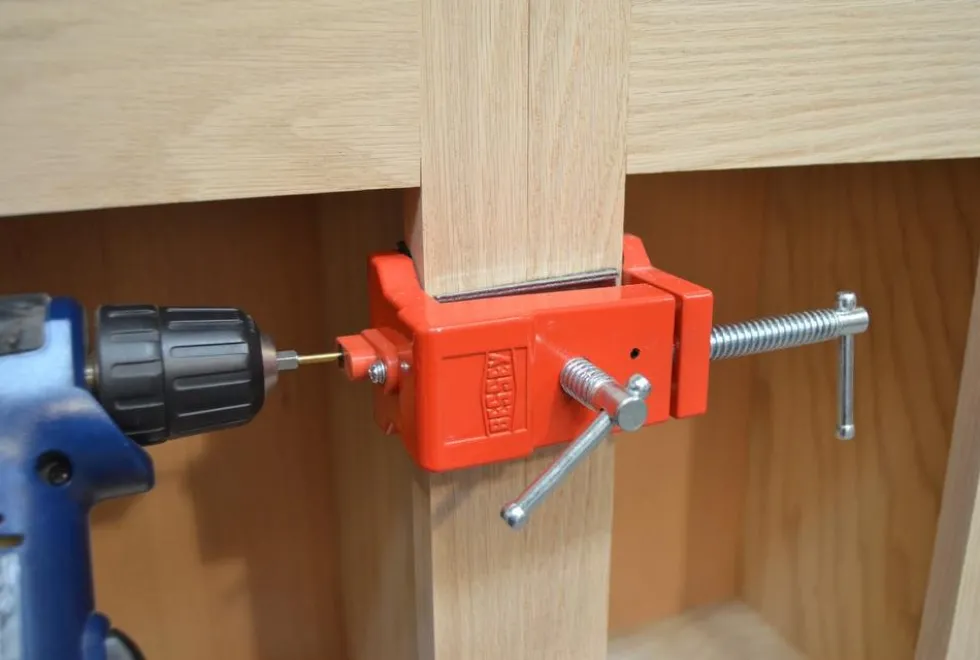

The Bessey Cabinet Clamp is used to align and clamp Cabinets with faceframes so they can be easily screwed together. The large screw on the side clamps the faceframes together while the screw on the front insures the faceframes are flush. Once, you have the cabinets clamped together, you can pre-drill using the built-in drill guide, then flip the guide out of the way and drive your screw.

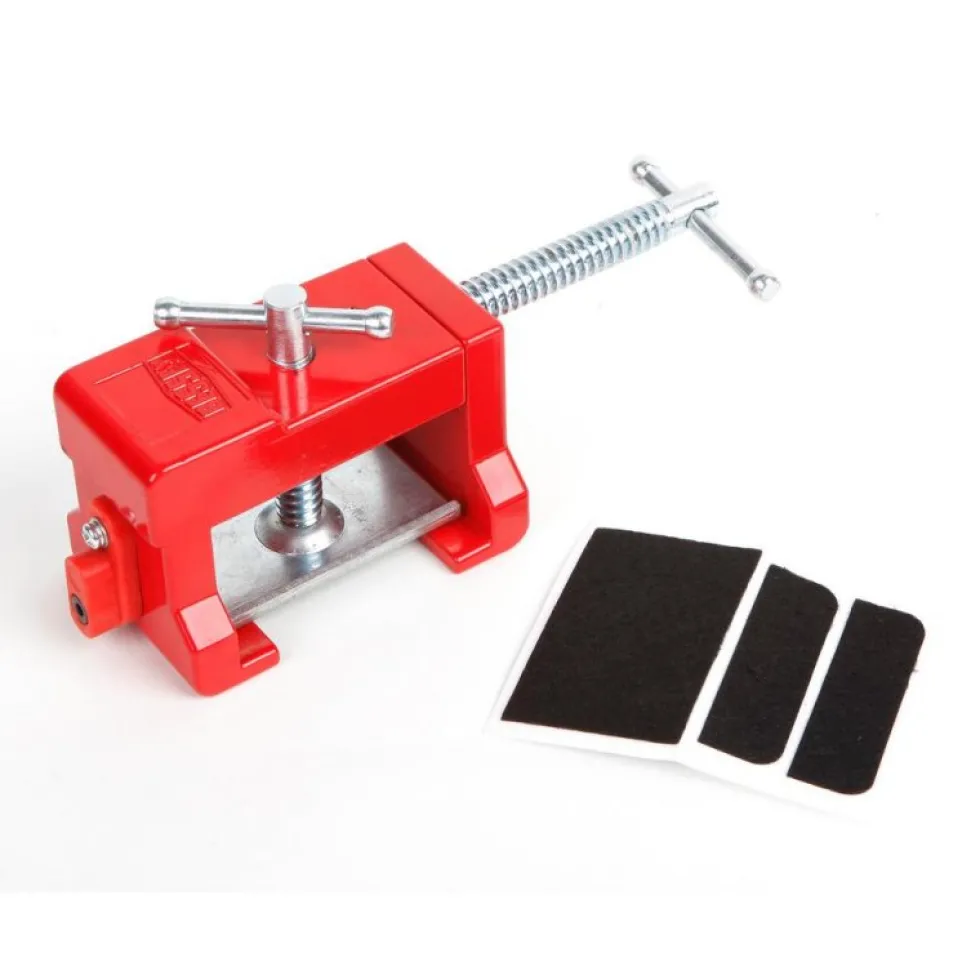

The BES8511 Cabinet Clamp has a heavy duty cast steel body and side jaw with aluminum alignment plate. It includes non-marring pads for all clamping faces.

Specifcations

• Clamping Capacity — 4″
• Throat depth — 1-1/4″
• Jaw Width — 2″
• Clamping Force — 300-600 lbs
• Weight — 1.49 lbs
