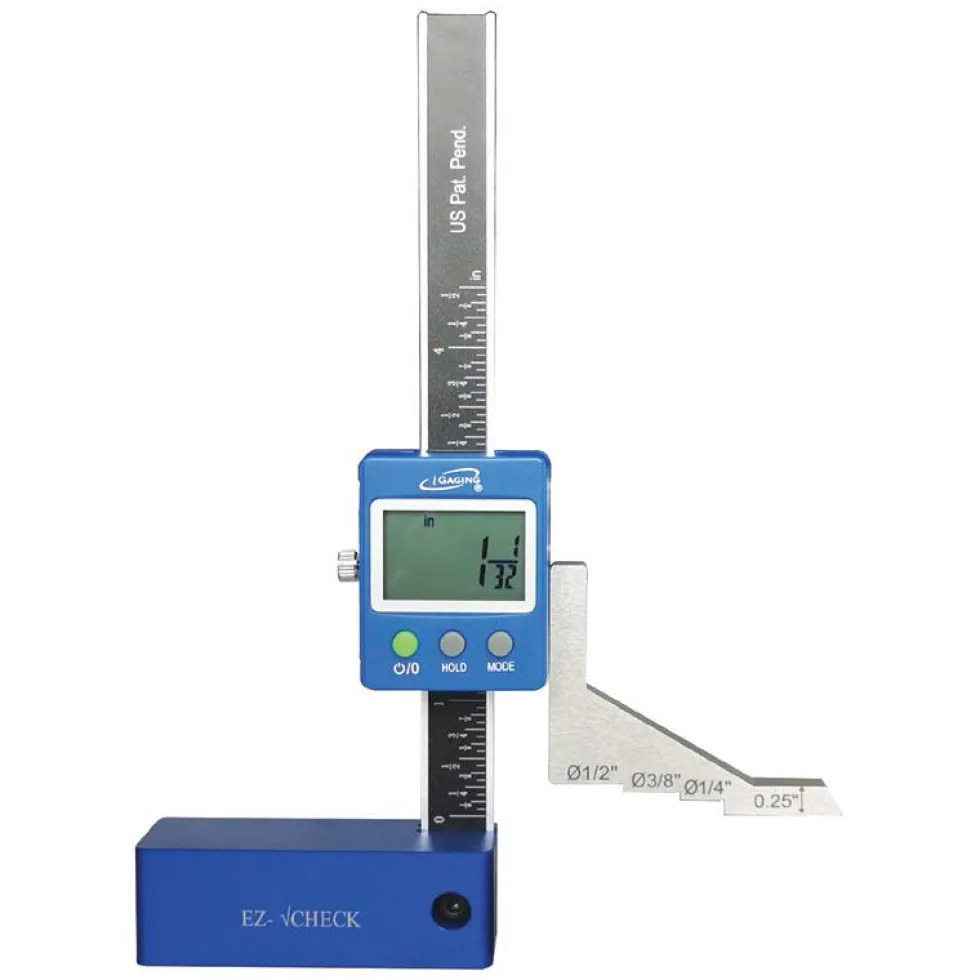

iGaging EZ-Check Digital Height Gauge

The EZ-Check Fractional Height Gauge lets you set your depth of cuts on your tablesaw, router & jointer with digital accuracy. The display shows both fractional and decimal inches, as well as millimeters. Fractional read out displays down to 1/648″ with an overall accuracy of .0015″ for decimal inches.The LCD display is large and easy-to-read. Strong magnets in the aluminum base steady the unit on cast iron tops and will support it horizontally on a steel fence for other measuring applications. Caliper foot and rule are made from hardened stainless steel.Capacity is 0″- 5″. Zero button for calibration and auto-shutoff feature. Includes a 3V lithium CR 2032 battery.

Features

• 0-5″/125 mm Measuring Range
• Resolution: 0.0005″/0.01 mm/1/64″
• Accuracy: 0.0015″/0.03 mm
• Large LCD display
• 1/4″, 3/8″ and 1/2″ shank center step
• 1/4″ hardened scriber
• Indicator bar for travel included
• Single stainless steel beam with light weight construction
• Anodized aluminum base with strong magnets
• Battery: 3V CR2032 included

Additional Information

iGaging EZ-Check Digital Height Gauge Instructions
